For mold makers, time is money. Protracted lead times, manual polishing, and the need for multiple setups on complex molds and dies are major profit killers. If you're facing these challenges, the solution lies in integrating a high-speed 5-axis CNC machining center into your workflow.
The Mold Maker's Dilemma: Where Are You Losing Time?
Traditional mold manufacturing often relies on multiple 3-axis machines and extensive EDM (Electrical Discharge Machining) work. This process is inherently fragmented, leading to:
Lengthy setup and re-fixturing times.
Inaccuracies between separate machining operations.
High dependency on manual labor for finishing.
Inability to efficiently machine deep, complex contours.
How 5-Axis CNC Technology Transforms Mold Making
A 5-axis machine addresses these bottlenecks head-on, offering a streamlined and highly accurate production process.
1. Streamlined Electrode Machining
The production of EDM electrodes for fine details is a perfect task for 5-axis. Simultaneous 5-axis machining allows you to undercut and create complex electrode geometries in a single setup, dramatically speeding up the entire EDM preparation process.
2. Direct Machining of Complex Core & Cavity Sets
With 5-axis capability, you can often machine intricate core and cavity sets directly from the hardened block of steel or aluminum, reducing or even eliminating the need for EDM. The ability to tilt the tool prevents collisions and allows for optimal access to deep pockets and steep walls.
3. Achieving "Right-Out-of-the-Machine" Surface Finishes
This is a game-changer. High-speed spindles combined with the precise tool orientation of 5-axis machining result in exceptionally smooth surface finishes. This can significantly reduce or eliminate manual polishing—one of the most time-consuming and skill-dependent steps in mold making.
Ideal 5-Axis Machine Features for Mold & Die Applications
When selecting a machine for mold manufacturing, prioritize these features:
High-Speed Spindle: Look for spindles with 20,000 - 42,000 RPM for fine detailing and excellent surface finishes.
Thermal Stability: A thermally symmetrical machine design and cooling systems are critical for maintaining accuracy over long machining cycles.
Precision and Accuracy: High-resolution encoders and a rigid mechanical structure are non-negotiable for producing dimensionally perfect molds.
Advanced Software Integration: Seamless workflow from your CAD/CAM system to the machine control is essential for programming complex 5-axis toolpaths.

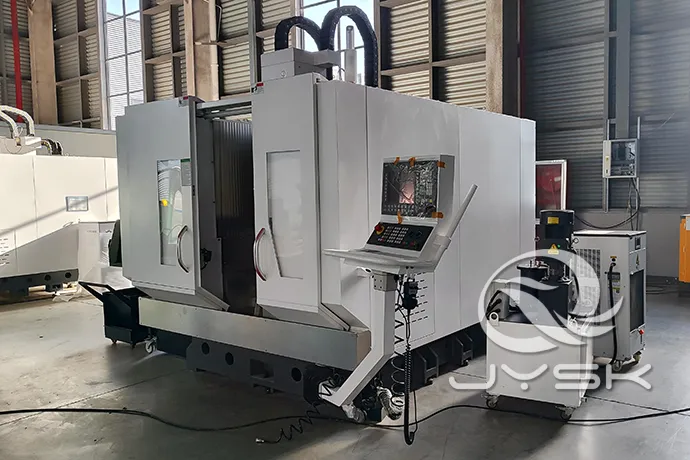

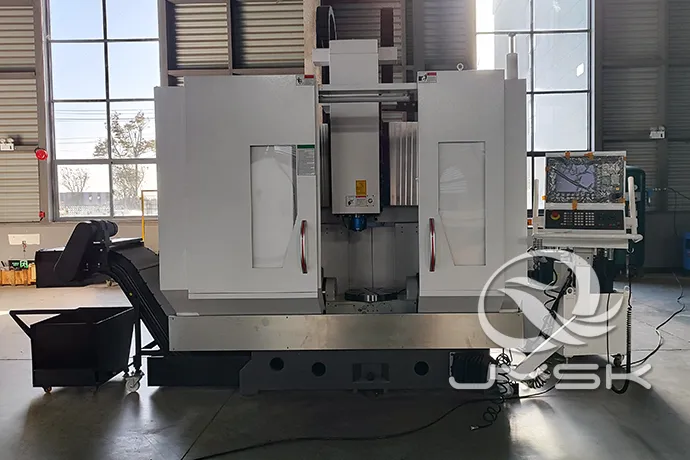

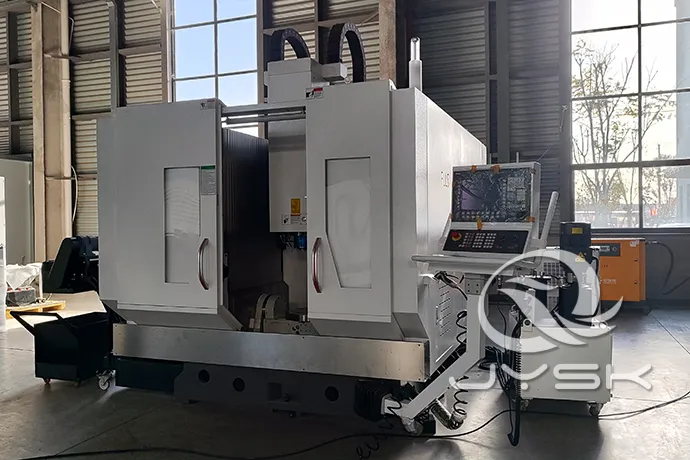

Our is engineered specifically for these demands, offering the speed, precision, and reliability that top-tier mold shops require.
Increase Your Mold Shop's Competitiveness
In a competitive global market, efficiency and quality are your biggest advantages. Upgrading to a 5-axis CNC machine isn't an expense; it's an investment in faster delivery times, lower labor costs, and superior mold quality.
Browse our dedicated solutions for the mold and die industry and see how we can help you overcome your biggest production bottlenecks. [Request a free machining demonstration] to see the difference for yourself.
