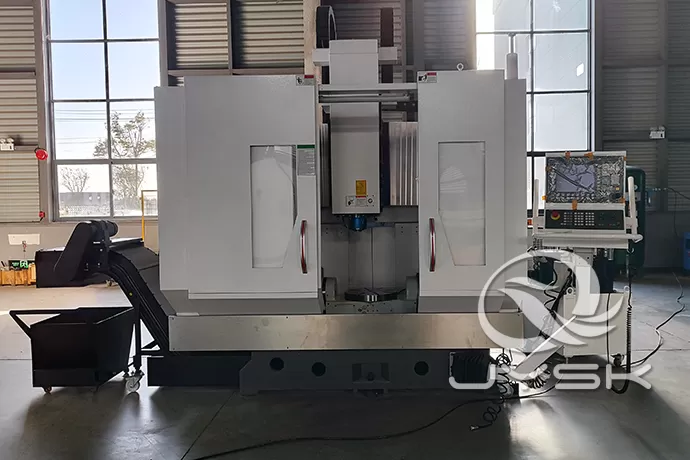

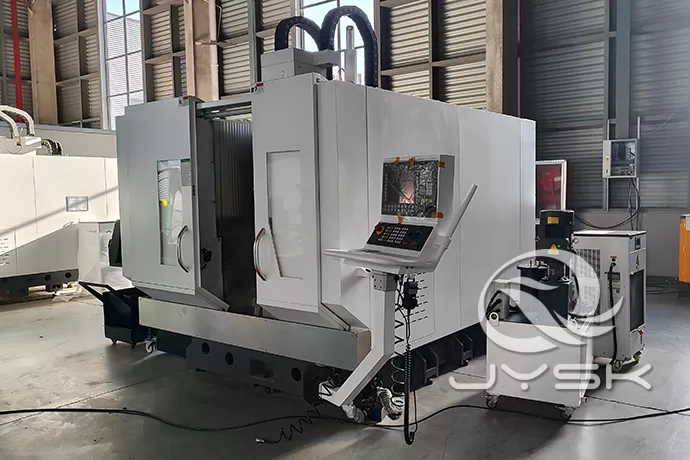

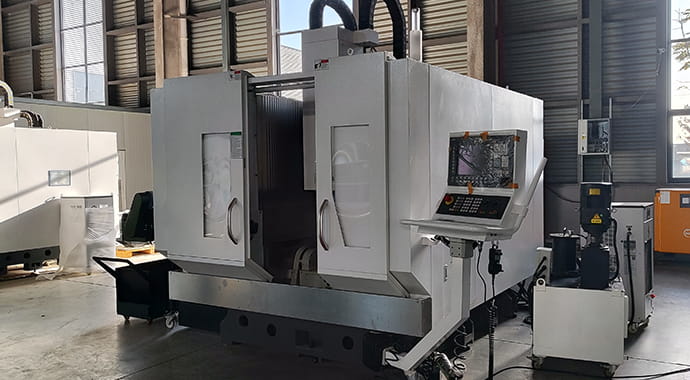

5-Axis 5 simultaneous cnc milling machine machining center equipment manufacturer, we can also customize according to your requirements.
Product Feature
Best in class components:
1. Spindle: Taiwan Royal/Cells/Germany INNA
2. Control system: Fanuc/Heidenhain/Siemens/Syntec/Lynuc (Optional)
3. Screw rail: Taiwan HIWIN/PMI
4. Bearing: FAG/NSK
5. Machine tool castings: HT300, which enables the machine tool to obtain high rigidity and stable precision;
6. Cradle Rotary Table: Choose the well-known brand Taiwan Parkson Cradle Rotary Table.
Structure:
1. Double Y-axis and double-drive structure: high precision and good stability, especially the verticality accuracy under heavy cutting;
2. Axis accuracy: the accuracy of the inclined axis reaches 25", and the accuracy of the rotating axis reaches 10" (the accuracy of the inclined axis and the rotating axis directly affects the spatial dimension accuracy of the processed parts);
3. High precision: positioning <4μm, repeat positioning <3μm (full stroke VDI standard);
4. Spindle taper: BT40 12000rpm standard (optional);
5. Tool magazine: ATC 24 units tools (Optional);
Product Parameters
Model | FLLS-F0 | FLLS-F1 | FLLS-F2 | FLLS-F3 |
Worktable | ||||
Worktable disc dimension | Φ250mm | Φ420mm | Φ630mm | Φ800mm |
Max rotational diameter | Φ400mm | Φ540mm | Φ900mm | Φ1050mm |
A axis rotation range | +20°/-120° | +20°/-120° | +20°/-120° | +20°/-120° |
C axis rotation range | +360°/-360° | +360°/-360° | +360°/-360° | +360°/-360° |
A,C axis positioning accuracy | 45/15sec | 45/15sec | 10/10sec | 45/15sec |
A,C axis repeat positioning accuracy | 8/6sec | 8/6sec | 4/4sec | 8/6sec |
Max load (level) | 50kg | 200kg | 850kg | 1000kg |
Max load (tilt) | 50Kg | 150Kg | 850Kg | 500kg |
XYZ | ||||
X/Y/Z axis max travel | 400/400/350mm | 500/500/400mm | 800/800/600mm | 1100/1100/650mm |
Distance from spindle end face to table | 130-480mm | 130-530mm | 130-730mm | 130-780mm |
Spindle | ||||
Spindle taper | BT40 | BT40 | BT40 | BT40 |
Max speed of spindle (standard) | 12000rpm | 12000rpm | 12000rpm | 12000rpm |
Spindle drive mode (standard) | direct-connection 12000 | direct-connection 12000 | direct-connection 12000 | direct-connection 12000 |
Feed | ||||
Feed rate | 10000mm/min | 10000mm/min | 10000mm/min | 10000mm/min |
Fast moving speed | 36/36/36m/min | 36/36/36m/min | 36/36/36m/min | 36/36/36m/min |
Ball screw specifications | 4016 | 4016 | 4016 | 4016 |
positioning accuracy | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm |
Repeated positioning accuracy | ±0.003/300mm | ±0.003/300mm | ±0.003/300mm | ±0.003/300mm |
Tool magazine (optional) | ||||
Tool magazine capacity | 20 | 24 | 24 | 24 |
Tool diameter * length | 80X200mm | 80*200mm | 80*200mm | 80*200mm |
Tool weight | 8kg | 8kg | 8kg | 8kg |
Shank specification | BT40 | BT40 | BT40 | BT40 |
Servo motor | ||||
Spindle motor | 7.5/11kw | 11/15kw | 11/15kw | 11/15kw |
X/Y/Z Axis motor | 2.0/2.0/3.0kw | 3.0/3.0/3.0kw | 3.0/3.0/3.0kw | 3.0/3.0/3.0kw |
Cooling motor | 0.49kw | 0.49kw | 0.49kw | 0.49kw |
General specification | ||||
Air supply requirements | 8KG | 8KG | 8KG | 8KG |
Power capacity | 20KVA | 30KVA | 50KVA | 60KVA |
Dimensions (L * W * H) | 2.5*2.6*2.6m | 3*2.8*2.8m | 4.5*3.6*3.4m | 4.8*4.2*3.6m |
Weight | 5T | 9T | 14T | 20T |
Note: Technical specifications may change without notice due to ongoing technological advancements.
