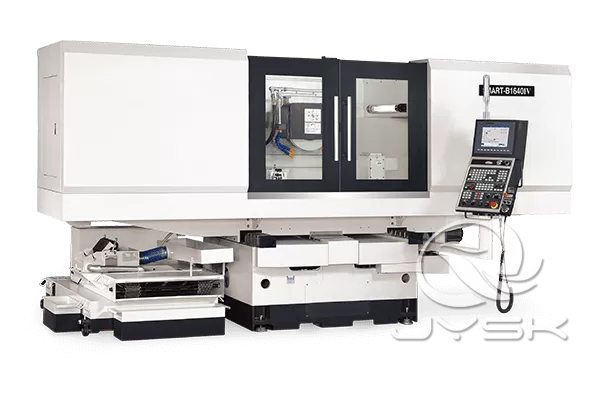

This series is designed specifically for the grinding of complex workpieces. By selecting corresponding accessories, fixtures and customized configurations for automation, it can enhance performance, precision, and stability to meet the demand of stringent quality requirements.
Product Feature
This series is capable of producing complicated shapes for highly accurate workpieces along with finer finishes. The heavy-duty sliderails, one-piece base casting and hardened wheelhead guideways create a solid, rigid machine structure that minimizes vibration, movement and displacement.
Our grinding machines are designed to be user friendly. Now, our exclusive next generation SMART iControl incorporates production efficiency, which simplifies operation procedures and greatly enhances the performance of Chevalier CNC grinders. Combined with TaskLink+, it allows operators to easily create their own programs for generating complex grinding tasks in a single cycle.
Product Parameters
SMART-H/B818IV
| Item | Description | SMART-H818IV | SMART-B818IV |
|---|---|---|---|
| Control system | SMART iControl | SMART iControl | |
| Capacity | Max. grinding length-longitudinal | 460 mm (18.1") | 460 mm (18.1") |
| Max. grinding width-crosswise | 200 mm (7.9") | 200 mm (7.9") | |
| Distance between table to spindle centerline | 445 mm (17.5") | 395 mm (15.6") | |
| Max. table load | 210 kg (462 lbs.) | 210 kg (462 lbs.) | |
| Table | Table size | 200 x 460 mm (7.9" x 18.1") | 200 x 460 mm (7.9" x 18.1") |
| Table speed (variable) | 0.1~25 m/min (0.33~82 fpm) | 0~20 m/min 0~65.6 fpm) | |
| Max. table travel | 510 mm (20.1") | 510 mm (20.1") | |
| Transverse movement (Z) | Max. travel | 220 mm (8.7") | 220 mm (8.7") |
| Feed speed | 0~3,000 mm/min (0~10 fpm) | 0~3,000 mm/min (0~10 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 340 mm (13.4") | 290 mm (11.4") |
| Feed speed | 0~3,000 mm/min (0~10 fpm) | 0~3,000 mm/min (0~10 fpm) | |
| Spindle | Spindle speed (variable speed) | 1,000~7,000 rpm | 1,000~7,000 rpm |
| Spindle motor | 3 kW (4 HP) | 3 kW (4 HP) | |
| Motors | Axis motors (X / Y / Z) | Y/Z: 1.1 kW | X: 2.4 kW, Y/Z: 1.1 kW |
| Hydraulic motor | 1 HP | — | |
| Wheel dimension | OD x Width x Bore | Ø205 x 13 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3") | Ø205 x 13 x Ø31.75 mm (Ø8" x 0.5" x Ø1.3") |
| Machine dimensions | Floor space (W x D x H) | 2,510 x 2,515 x 2,010 mm (98.8" x 99.0" x 79.0") | 2,510 x 2,015 x 2,010 mm (98.8" x 79.3" x 79.0") |
| Net weight | 1,550 kg (3,400 lbs.) | 1,550 kg (3,400 lbs.) |
SMART-H/B1224IV
| Item | Description | SMART-H1224IV | SMART-B1224IV |
|---|---|---|---|
| Control system | SMART iControl | SMART iControl | |
| Capacity | Max. grinding length-longitudinal | 610 mm (24.0") | 610 mm (24.0") |
| Max. grinding width-crosswise | 305 mm (12.0") | 305 mm (12.0") | |
| Distance between table to spindle centerline | 600 mm (23.6") | 600 mm (23.6") | |
| Max. table load | 370 kg (815 lbs.) | 370 kg (815 lbs.) | |
| Table | Table size | 300 x 600 mm (11.8" x 23.6") | 300 x 600 mm (11.8" x 23.6") |
| Table speed (variable) | 5~25 m/min (16~82 fpm) | 0~20 m/min (0~65.6 fpm) | |
| Max. table travel | 700 mm (27.6") | 700 mm (27.6") | |
| Transverse movement (Z) | Max. travel | 350 mm (13.8") | 350 mm (13.8") |
| Feed speed | 0~3,000 mm/min (0~10 fpm) | 0~3,000 mm/min (0~10 fpm) | |
| Wheelhead elevation (Y) | Max. travel | 440 mm (17.3") | 440 mm (17.3") |
| Feed speed | 0~3,000 mm/min (0~10 fpm) | 0~3,000 mm/min (0~10 fpm) | |
| Spindle | Spindle speed (variable speed) | 500~2,200 rpm | 500~2,200 rpm |
| Spindle motor | 11 kW (15 HP) | 11 kW (15 HP) | |
| Motors | Axis motors (X / Y / Z) | Y/Z: 1.1 kW | X: 3.9 kW, Y/Z: 1.1 kW |
| Hydraulic motor | 3 HP | — | |
| Wheel dimension | OD x Width x Bore | Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5") | Ø355 x 50 x Ø127 mm (Ø14" x 2" x Ø5") |
| Machine dimensions | Floor space (W x D x H) | 4,020 x 2,450 x 2,080 mm (158.3" x 96.5" x 81.9") | 3,160 x 2,450 x 2,080 mm (124.4" x 96.5" x 81.9") |
| Net weight | 3,200 kg (7,000 lbs.) | 3,200 kg (7,000 lbs.) |
If you need more machine parameters, please contact us.
Note: Technical specifications may change without notice due to ongoing technological advancements.
