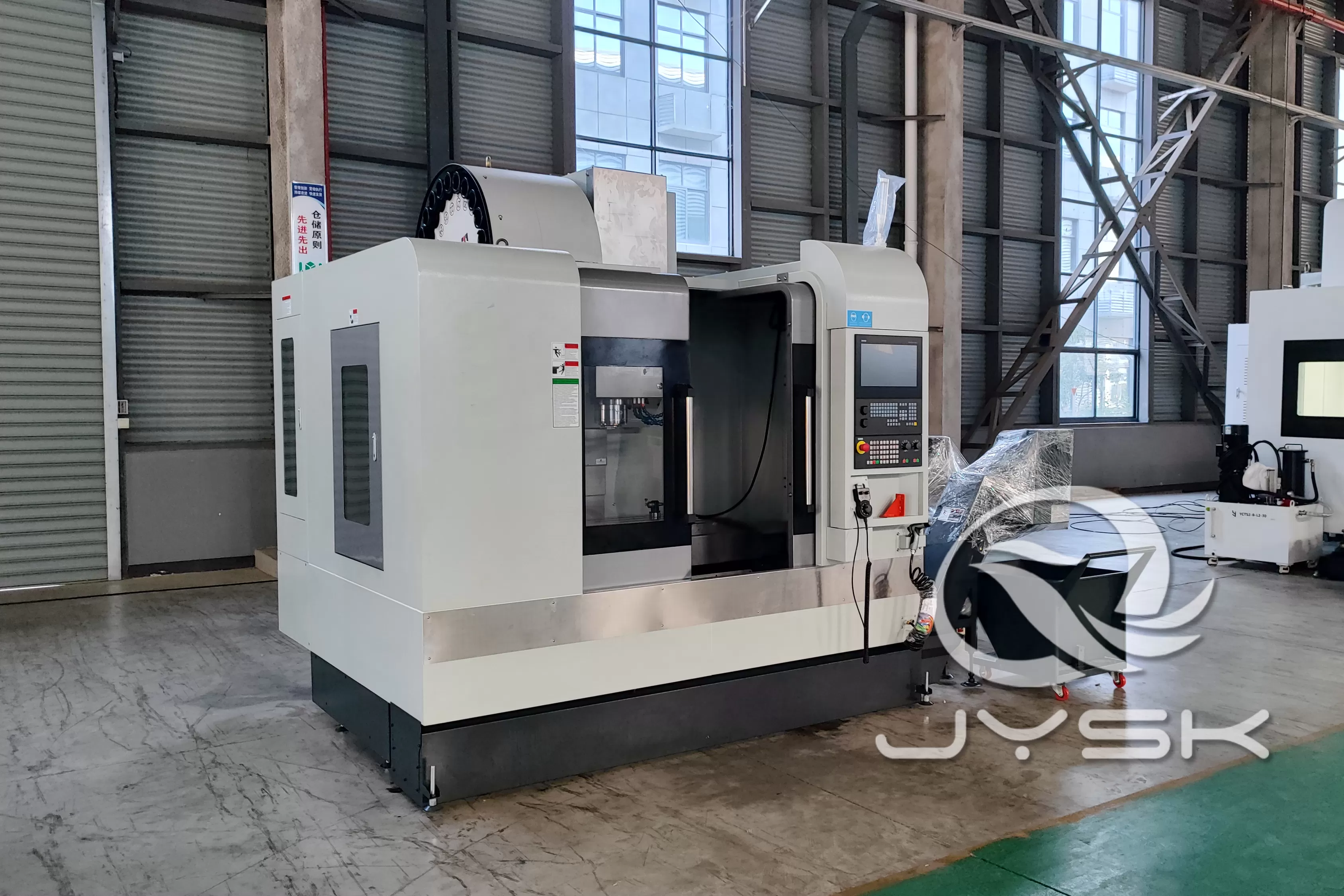

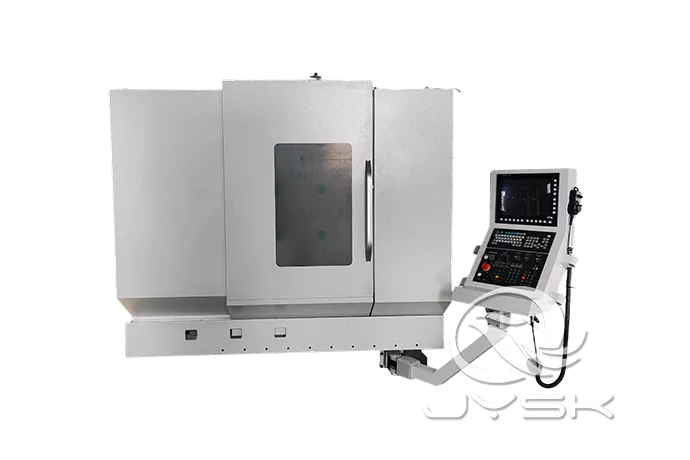

VMC Vertical CNC Milling Machine Machining Center has a larger processing range than ordinary models, which greatly enhances the rigidity of the machine tool. It has been strengthened on the saddle of the worktable. At the same time, the spindle motor can reach a high-power motor of up to 15KW, and the ultra-wide machine tool The base and column are combined with three-axis high-rigidity and heavy-duty roller guide rails, so that the table does not hang when it is displaced. The X-axis and Z-axis use 6 sliders at the same time, which not only enhances the rigidity requirements of the load, but also makes the machine tool more effective during processing. It absorbs the vibration of heavy cutting, thereby improving the accuracy and smoothness of the workpiece. This model is a model with a large stroke and high rigidity, which can fully meet the processing needs of most steel parts!
Product Feature
1. Controller: Standard Japanese FANUC controller, stable operation, powerful functions, with crystal buttons to provide a user-friendly operating environment, comfortable operating position, safe and convenient operation;
2. Tool magazine: disc type 24 tool magazine, the tool magazine is installed on the base, which can reduce the influence of the tool magazine weight on the column, the tool magazine sleeve is easy to replace, the tool magazine tool change is a cam structure, the movement is stable, and the positioning is accurate;3. Electric box: The electric box is equipped with a heat exchanger to ensure the stability of the control system, and the external pipeline is protected by a serpentine tube to ensure waterproofness, heat insulation and prevent oil infiltration;
4. The spindle is equipped with a belt-type 10000rpm spindle as standard: no noise and little vibration;
5. Coolant nozzles around the spindle can effectively eliminate the heat generated during the cutting process. The automatic depressurization lubrication system of this machine provides centralized oil supply, and the advanced depressurization intermittent oil supply system provides timely and appropriate oil supply to each lubrication point in a timed, quantitative, constant pressure and individual manner to ensure that each lubrication position is determined get lubricating oil.
Product Parameters
| Model | VMC-855 | VMC-1160 | VMC-1370 | VMC-1580 | VMC-1890 | |
| Item | Unit | Numerical value | Numerical value | Numerical value | Numerical value | Numerical value |
| XYZ | ||||||
| X, Y, Z axis travel | mm | 800*550*550 | 1100*600*600 | 1300*700*650 | 1500*800*700 | 1800*900*600 |
| Spindle nose to worktable surface | mm | 120-670 | 140-740 | 140-790 | 150-850 | 115-715 |
| Spindle center to Z-axis shield face | mm | 570 | 630 | 710 | 840 | 950 |
| Worktable | ||||||
| Worktable dimension | mm | 1000*550 | 1200*600 | 1400*700 | 1600*800 | 2000*900 |
| Worktable maximum load | kg | 750 | 900 | 1000 | 1300 | 1600 |
| T-slot size (width*slots*spacing) | mm | 18*5*90 | 18*5*100 | 5*18*120 | 22*7*110 | 22*5*165 |
| Spindle | ||||||
| Spindle speed | rpm | 10000 | 10000 | 10000 | 8000 | 6000 |
| Spindle motor | kw | 11/15 | 11/15 | 11/15 | 15 | 18.5/22 |
| Spindle taper | BT40 | BT40(Optional BT50) | BT40(Optional BT50) | BT50(Optional BT40) | BT50(Optional BT40) | |
| Spindle diameter | mm | 150 | 150 | 150 | 155/190 | 155/190 |
| Feed rate | ||||||
| Rapid displacement of X/Y/Z axis | m/min | 48*48*48 | 36*36*36 | 24*24*24 | 20*20*20 | 20*20*15 |
| X/Y/Z axis screw specifications | 4016/4016/4016 | 4012/4012/4012 | 4012/4012/4012 | 5010/5010/5010 | 5512/5512/5512 | |
| X/Y/Z axis motor power | kw | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 |
| Precision | ||||||
| Repeat (full stroke) | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Positioning accuracy (full stroke) | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Tool Magazine | ||||||
| Tool changer type | ATC | ATC | ATC | ATC | ATC | |
| Tool magazine capacity | branch | 24(Optional BT40/32 ) | 24(Optional BT40/32 BT50/30) | 24(Optional BT40/32 BT50/30) | 24(Optional BT40/32 BT50/30) | 24(Optional BT40/32 BT50/30) |
| Maximum tool diameter | mm | 80 | 80(Optional BT50/110) | 80(Optional BT50/110) | 80(Optional BT50/110) | 80(Optional BT50/110) |
| Maximum knife length | mm | 300 | 300(Optional BT50/350) | 300(Optional BT50/350) | 300(Optional BT50/350) | 300(Optional BT50/350) |
| Maximum knife weight | kg | 8 | 8 | 8 | 15 | 15 |
| Tool change time (tool to tool) | sec | 2 | 2 | 2 | 4 | 4 |
| Tool change time (cutting to cutting) | sec | 2.8 | 2.8 | 2.8 | 4.8 | 4.8 |
| Power source | ||||||
| Spindle oil temperature cooler | w | 515 | 515 | 515 | 515 | 515 |
| Orbital lubrication automatic oiling machine | w | 200 | 200 | 200 | 200 | 200 |
| Cutting fluid pump | w | 700 | 700 | 700 | 700 | 700 |
| Air pressure | kgf/cm2 | 8 | 8 | 8 | 8 | 8 |
| electricity demand | KVA | 20 | 30 | 30 | 30 | 30 |
| Machine size and weight | ||||||
| Weight | T | 6 | 7 | 9 | 12 | 13.5 |
| Dimensions (L*W*H) | m | 2.65*2.25*2.5 | 3.0*2.25*2.6 | 3.4*3.3*3.0 | 3.4*3.3*3.0 | 3.8*3.3*3.0 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
