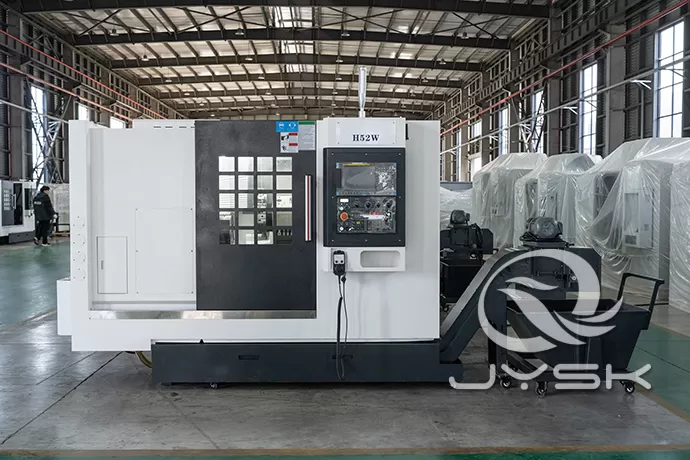

Turning and Miling Machine

Application: Turning and Miling Machines are widely used in aerospace, information and communication, automotive mold, medical equipment, machinery manufacturing and parts processing industries.

Maximum rotating diameter: Ф360/Ф550/Ф600/Ф650/Ф780mm

Maximum turning length（Chunk）: 280/450/500/1000/1400/1500mm

Product Description

Turning and Miling Machine adopts 30° slanting bed structure, lathe bed, foot and water tank are one-piece casting, together with a wide and thick base, which greatly enhances the stability and vibration-resistant performance of the lathe. All the parts of lathe have been annealed doulble tempered, which enhances the precision retention and stability of high-speed machining. The machine adopts fully closed protection, easy to clean, no leakage, creating a good production environment. For the chip conveyor, discharge port can be optional by rear or side to meet the different needs of customers.

Standard configuration(Optional)：HIWIN/PMI P-level matching guide rail、HIWIN/PMI C3-level double-nut screw rod、Imported servo or hydraulic turret、Taiwan spindle、SHOWA centralized lubrication system、Lingxiao cooling system、Fully enclosed protection、C-axis function、Integral movable tailstock without sleeve linear rail.

Product Feature

1. Multi-cavity honeycomb structure is adopted to enhance the stability and vibration resistance of the machine.

2. The spindle box adopts dense rib plate design, which enhances the rigidity and is more conducive to heat dissipation, ensuring the thermal stability of spindle machining.

3. The large span of the spindle box and the best placement make a superior overall coordination of the machine, stable machining accuracy can be ensured even for strong cutting.

4.Turret spindle unit with customized brand from Taiwan Province ensures the precision, rigidity and durability of the machine.5. The one-piece casting structure of screw bearing seat and screw nut seat provides a strong base for pre-tensioning.

6. Equipped with high quality double nut C3 grade ball screws for more reliable precision and durability.

7. Each machine has to go through over no-load test for over 72 hours, high-intensity vibration test, long-time high-pressure spray test, laser interferometer precision compensation, precision stability test and cold & heat difference test before delivery.

Parameters

If the table display is incomplete, swipe left and right to view the table.

Product Parameters

Model		FLLS-H52TMY	FLLS-H650TMY
Items		Value	Value
Processing capcity（mm）	Maximum rotating diameter（mm）	Ф650	Ф780
	Maximum turning diameter（mm）	Ф370	Ф530
	Maximum turning length（mm）	450	1400
	Angle of slant bed (°)	30	30
	Spindle/Chunk specification	A2-6/8'	A2-8/10'
Spindle bore/barstock diameter（mm）	Ф56/Ф45	Ф87/Ф72
2-axis drive	X axis max. travel（mm）	270	350
	Y axis max. travel（mm）	±40	±70
	Z axis max. travel（mm）	610	1600
	Rapid traverse（m/min）	24/24/24	20/20/20
Tool system	Tool station	12T	12T
Tool system	Standard shank type（mm）	25×25/Ф40	25×25/Ф32
Tail stock	Tail stock sleeve diameter（mm）	80	140
Tail stock	Travel（mm）	80	140
Accuracy	Positioning accuracy（mm）	X≤0.005 Z≤0.008	X≤0.005 Z≤0.008
Accuracy	Repeat positioning accuracy（mm）	X≤0.003 Z≤0.005	X≤0.003 Z≤0.005
Electricity	Spindle motor（kW）	11月15日	15/18.5
	Spindle speed（rpm）	4000	2500
	Control system
General specifications	Dimensions （m）	2.3×1.7×1.8	4.4×1.9×2.2
General specifications	Weight（kg）	4300	7200
